SYXD01F-0202-D-WOK20220423A1.A2.A3.

型號 Type外徑 external diameter齒頂圓直徑 Addendum diameter齒根圓直徑 Root cir

立即咨詢立即咨詢

咨詢電話：0519-86578911

微信：13506119400郵箱：wokclutch@aliyun.com

產品詳情

SYXD01F-0202-D-WOK20220423A1.A2.A3.

型號 Type	外徑 external diameter	齒頂圓直徑 Addendum diameter	齒根圓直徑 Root circle diameter	分度圓直徑 Dividing circle diamerer	齒數 Number of teeth	模數 Modulus	壓力角 Pressure angle	精度等級 Accuracy class
DLK077×22-25-X	77	65.25	70.75	67.5	54	1.25	20°	8GJ
DLK087×20.5-39-X	87	76.3	81.1	78	78	1	20°	8GJ
DLK94-Z63	94	61	65.5	63	63	1	20°	8EG/GB1095
DLK98-Z54	98	65.35	70.62		54	1.25	20°	GB10095-888GJ
DLK99-Z54	99	65.35	70.62		54	1.25	20°	GB10095-888GJ
DLK103.5-Z58	103.5	70	75.625	72.5	58	1.25	20°	8級-GB/T10095
DLK110×21.5-40-Z81	110	98.7	104.33	101.25	81	1.25	20°	8級/GB10095
DLK116-Z69	116	83.986	89.611		69	1.25	20°	GB10095-888GJ
DLK124-Z60	124	86.85	93.6	90	60	1.5	20°	8EG/GB1095
DLK129-Z75	129	91.25	96.785	92.419	75	1.25	20°	JGMA 3級
1. 本產品適用于電動自行車輪轂電機(內轉子電機) This product is suitable for electric bicycle wheel hub motors( Inner Rotor Motor) 2. DLK98-Z54 對應產品型號編碼-SYXD01F-0202-D-WOK20220423A1.A2.A3. L-4.7-1NEW ← 31-4(左旋) DLK98-Z54 Corresponding product model code：SYXD01F-0202-D-WOK20220423A1.A2.A3. L-4.7-1NEW ← 31-4(levorotation)

產品說明

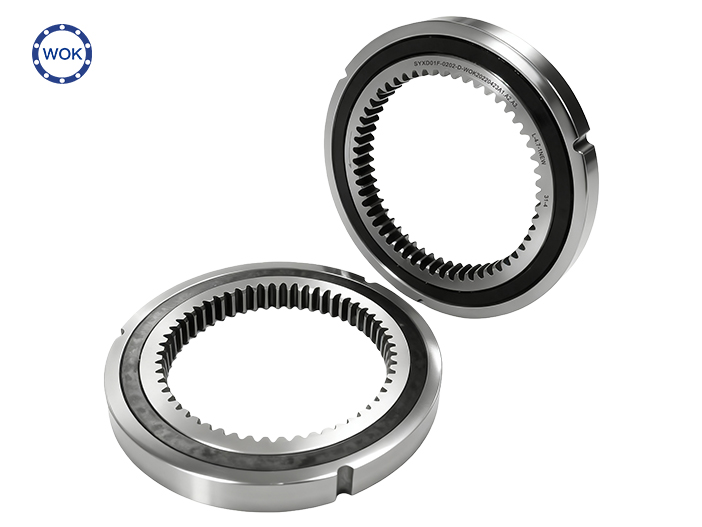

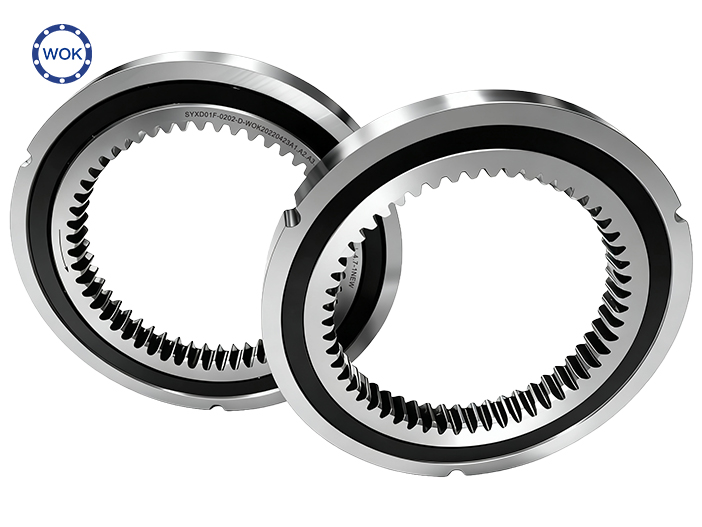

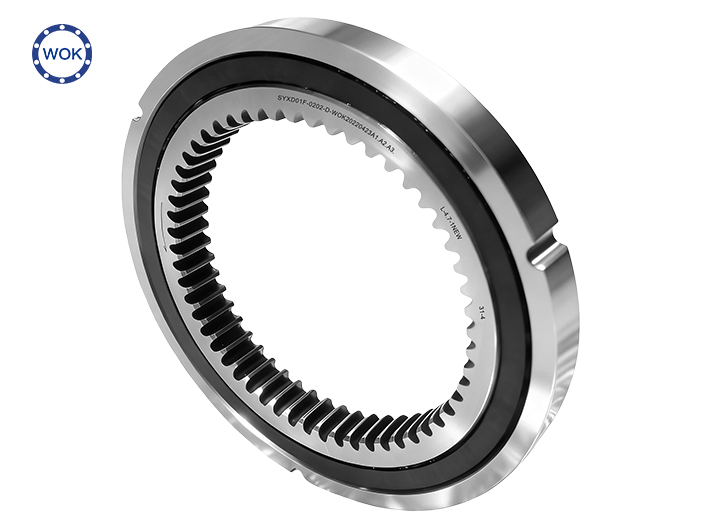

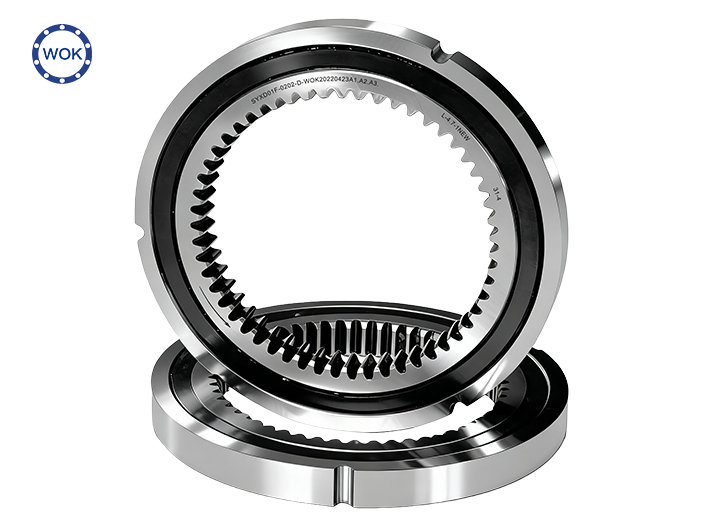

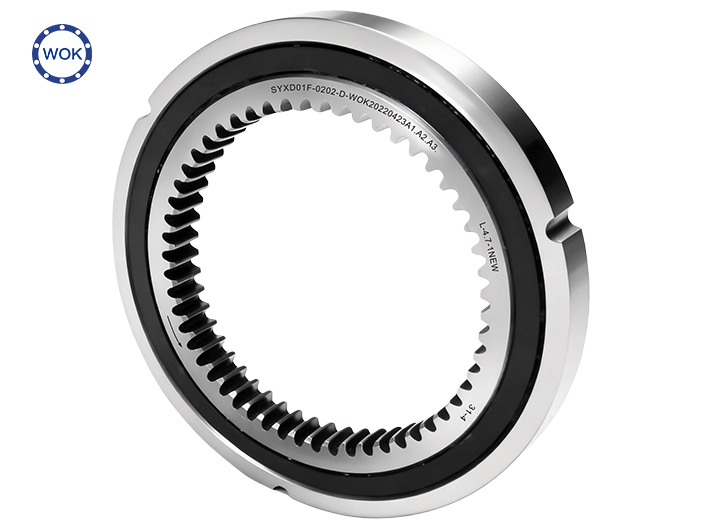

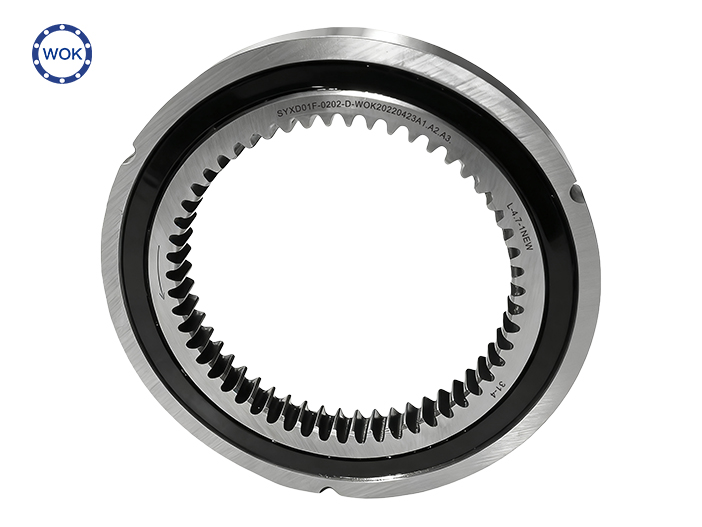

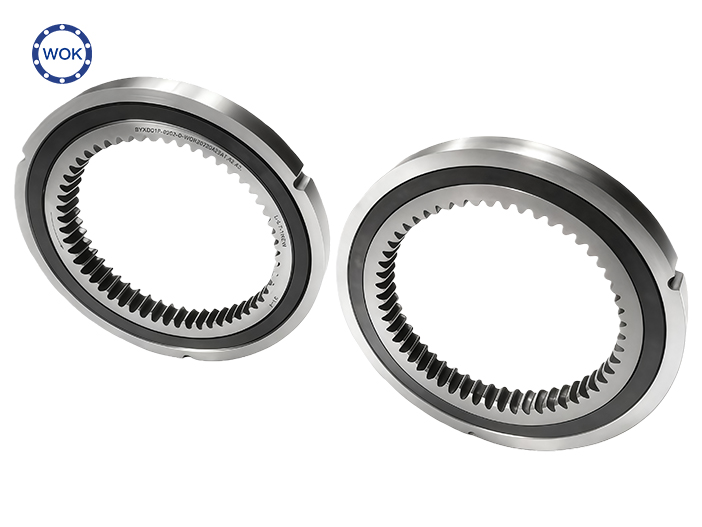

本款單向離合器主要應用于配備內轉子電機的電動自行車，由本公司獨立研發和生產。使用本離合器轉子的動平衡效果更好，提升了電動自行車電機的使用性能，具有使用壽命長，耐高溫，低噪音，性能更穩定等優點。

Product description

This one-way clutch is primarily used in electric bicycles equipped with internal rotor motors, and is independently developed and produced by our company. The use of this clutch rotor results in better dynamic balancing, enhancing the performance of the electric bicycle motor. It boasts advantages such as long service life, high temperature resistance, low noise, and more stable performance.

技術參數要求：

1.內部使用高溫潤滑脂填料并做好密封，潤滑脂工作溫度為-20℃至150℃。

2.軸承游隙：C3-C5，軸承振動級：Z2組。

3.零件在裝配前必須清理和清洗干凈，嚴禁敲打內、外圈。

4.單向器額定扭矩50N.m，最大扭矩大于80N.m，離合次數大于30萬次以上。

5.從視圖A方向看，外圈不動，內齒輪圈按照上圖旋轉箭頭方向旋轉。

Technical parameter requirements:

1. Use high-temperature grease filling internally and seal it properly. The working temperature of the grease is -20 ℃ to 150 ℃.

2. Bearing clearance: C3-C5, bearing vibration level: Z2 group.

3. The parts must be cleaned and washed thoroughly before assembly, and it is strictly prohibited to strike the inner and outer rings.

4. The rated torque of the one-way drive is 50N. m, the maximum torque is greater than 80N. m, and the number of clutch transmissions is greater than 300000 times.

5. From the direction of view A, the outer ring remains stationary, while the inner wheel rim rotates in the direction of the rotation arrow shown in the diagram.
