電動自行車內轉子電機離合器技術參數表E-bike Inner Rotor Motor Clutch Technical Specifications Tab

立即咨詢立即咨詢

咨詢電話：0519-86578911

微信：13506119400郵箱：wokclutch@aliyun.com

產品詳情


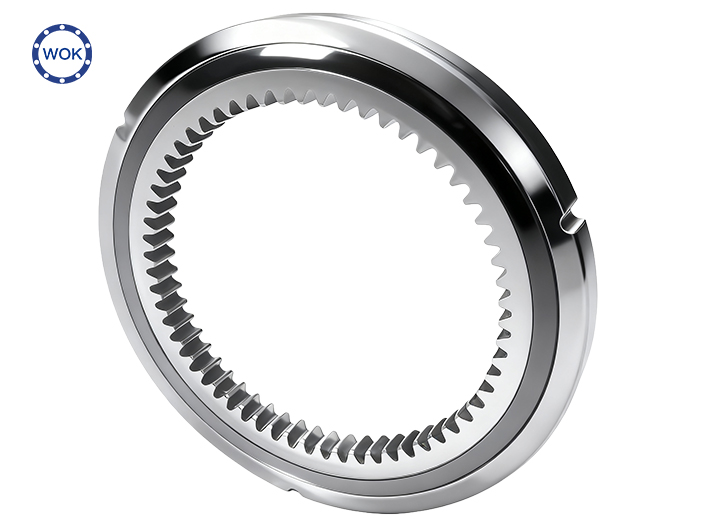

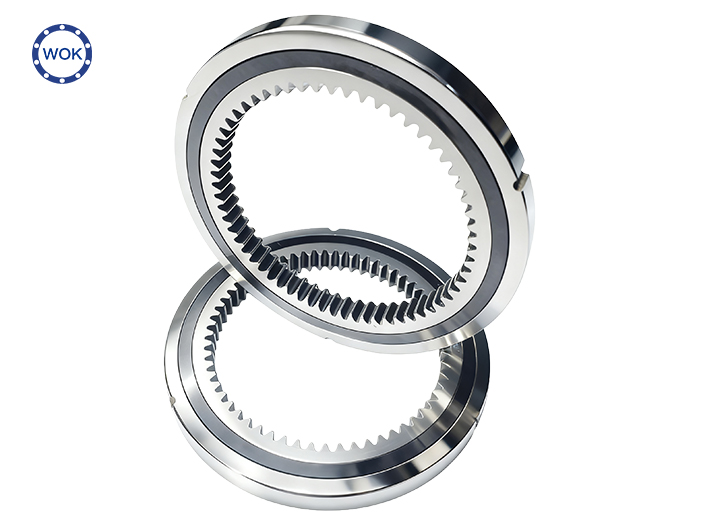

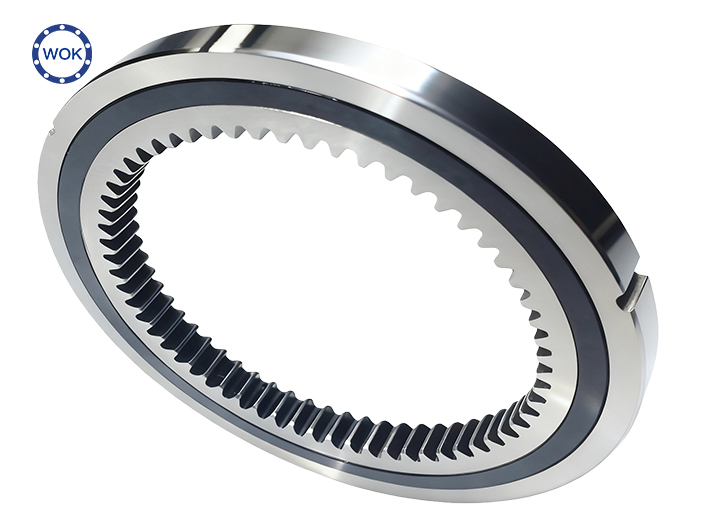

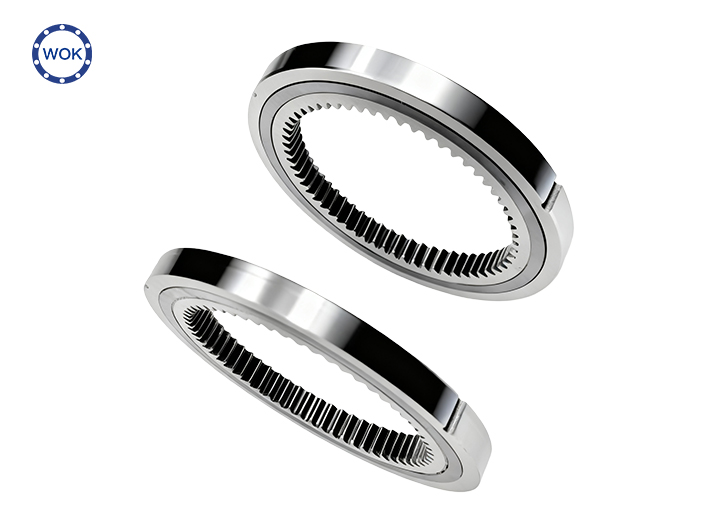

電動自行車內轉子電機離合器技術參數表 E-bike Inner Rotor Motor Clutch Technical Specifications Table
型號 Type	外徑 external diameter	齒頂圓直徑 Addendum diameter	齒根圓直徑 Root circle diameter	分度圓直徑 Dividing circle diamerer	齒數 Number of teeth	模數 Modulus	壓力角 Pressure angle	精度等級 Accuracy class
DLK077×22-25-X	77	65.25	70.75	67.5	54	1.25	20°	8GJ
DLK087×20.5-39-X	87	76.3	81.1	78	78	1	20°	8GJ
DLK94-Z63	94	61	65.5	63	63	1	20°	8EG/GB1095
DLK98-Z54	98	65.35	70.62		54	1.25	20°	GB10095-888GJ
DLK99-Z54	99	65.35	70.62		54	1.25	20°	GB10095-888GJ
DLK103.5-Z58	103.5	70	75.625	72.5	58	1.25	20°	8級-GB/T10095
DLK110×21.5-40-Z81	110	98.7	104.33	101.25	81	1.25	20°	8級/GB10095
DLK116-Z69	116	83.986	89.611		69	1.25	20°	GB10095-888GJ

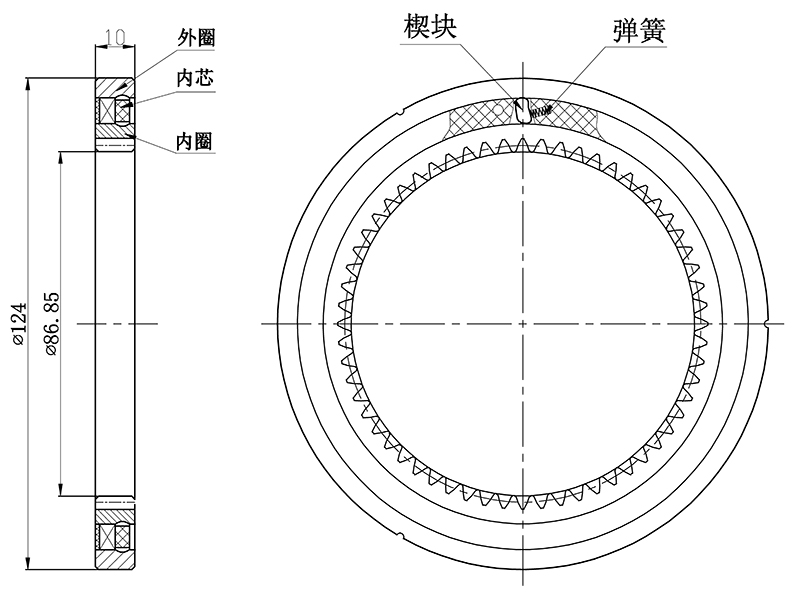

DLK124-Z60	124	86.85	93.6	90	60	1.5	20°	8EG/GB1095
DLK129-Z75	129	91.25	96.785	92.419	75	1.25	20°	JGMA 3級

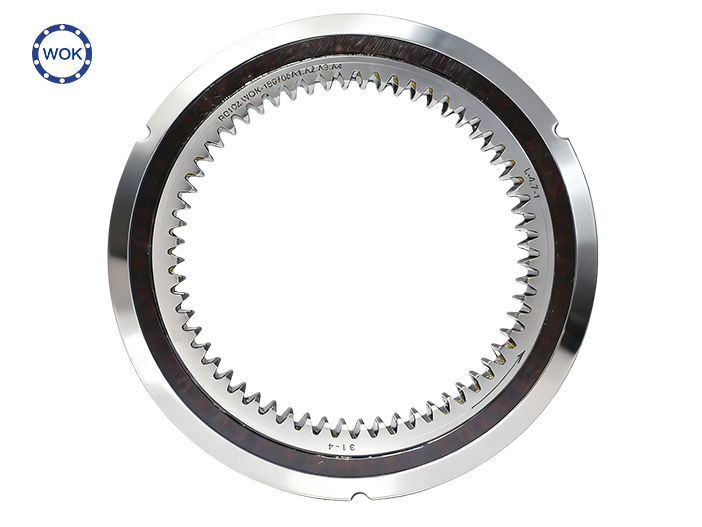

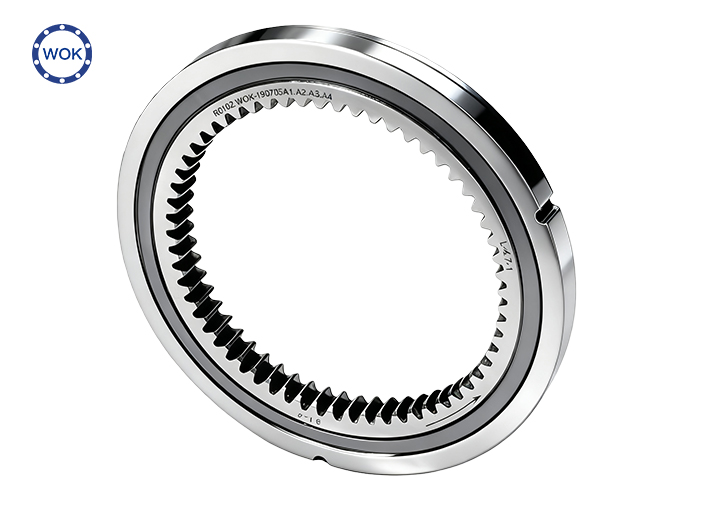

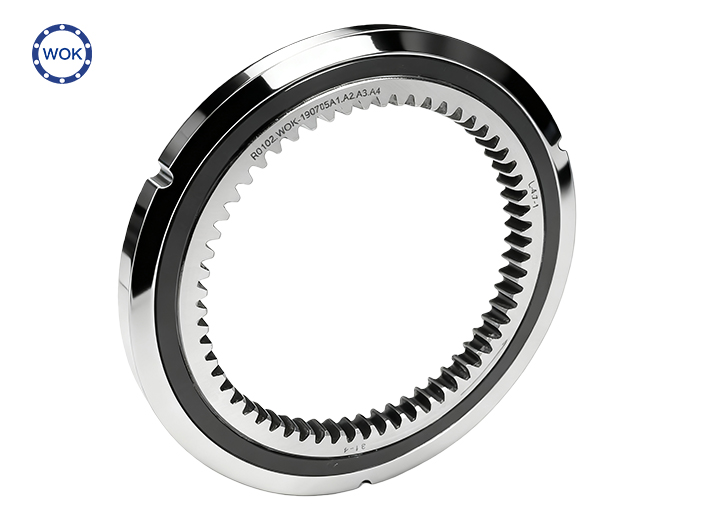

1. 本產品適用于電動自行車輪轂電機(內轉子電機) This product is suitable for electric bicycle wheel hub motors( Inner Rotor Motor) 2.DLK124-Z60 對應產品型號編碼-R0102.WOK-190705A1.A2.A3.A4 L-4.7-1 ← 31-4(左旋) DLK124-Z60 Corresponding product model code: R0102.WOK-190705A1.A2.A3.A4 L-4.7-1 ← 31-4(levorotation)

說明

本款單向離合器主要應用于配備內轉子電機的電動自行車，由本公司獨立研發和生產。使用本離合器轉子的動平衡效果更好，提升了電動自行車電機的使用性能，具有使用壽命長，耐高溫，低噪音，性能更穩定等優點。

This one-way clutch is mainly used for electric bicycles equipped with an inner rotor motor, and is independently developed and produced by our company. The use of this clutch rotor has a better dynamic balance effect, improves the performance of electric bicycle motors, and has advantages such as long service life, high temperature resistance, low noise, and more stable performance.

技術要求

1.內部使用高潤滑脂填料并做好密封；

2.零件在裝配前必須清理和清洗干凈，不得有毛刺、飛邊、氧化皮、銹蝕、切屑、油污、著色劑和灰塵；

3.單向器額定扭矩50N.m，最大扭矩大于80N.m，離開時轉動靈活，離合次數大于30萬次以上；

4.單向器打滑時滾珠必須工作，此時內外圓圈同心度保持在0.035以內，單向器傳遞扭矩時棘輪工作，此時內外圈同心度0.045以內。

1. Use high lubricating grease fillers internally and seal them properly;

2. The parts must be cleaned and cleaned before assembly, without burrs, flash edges, oxide skin, rust, chips, oil stains, colorants, and dust;

3. The rated torque of the one-way clutch is 50N. m, and the maximum torque is greater than 80N. m. It can rotate flexibly when leaving, with more than 300000 clutch times;

4. When the one-way clutch slips, the ball must work. At this time, the concentricity of the inner and outer rings remains within 0.035. When the one-way clutch transfers torque, the ratchet operates. At this time, the concentricity of the inner and outer rings is within 0.045.
